Fitment:
Toyota
2004-2015 TOYOTA TACOMA (second gen tacoma) 6 lug only
2015-2023 TOYOTA TACOMA 3rd N300 6 lug only
2005-2023 TOYOTA PRERUNNER
2004-2015 TOYOTA HILUX 7th AN10/20/30
2015-2023 TOYOTA HILUX 8th AN120/130
2004-2023 TOYOTA FORTUNER
Does not fit 04-15 TACOMA 2WD （except PRERUNNER）
Features:
-
Designed for vehicles with 2 to 4 inches of front lift
-
Provide 3.5 degrees of built-in caster
-
Maintain stock ride quality
-

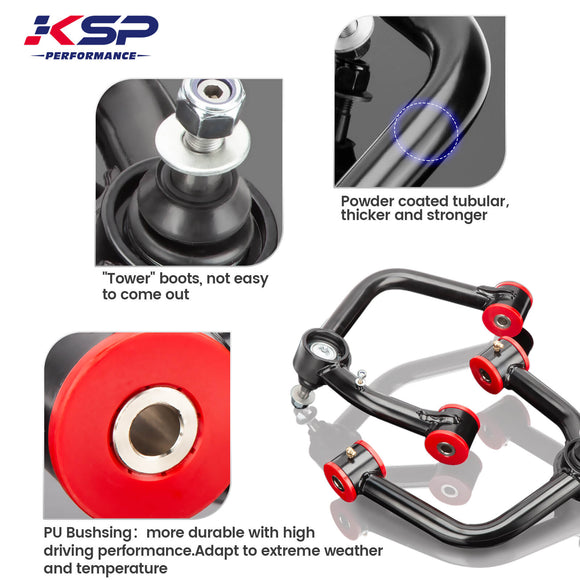

Polyurethane bushing for driving performance and longer service life
-
Constructed from 1.25" DOM tubing for superior strength and durability
-

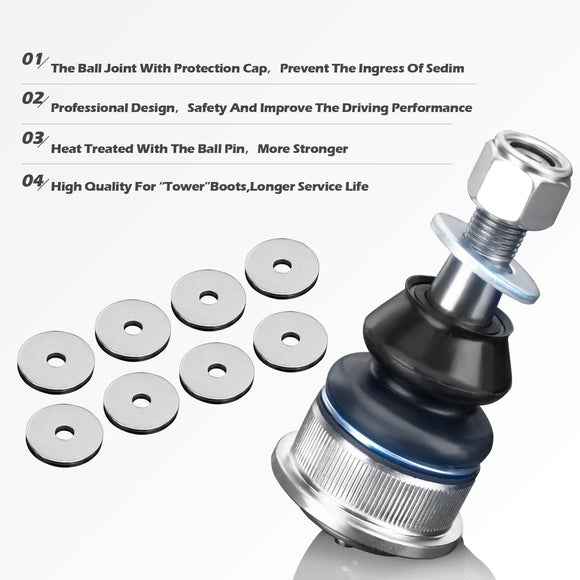

High quality dust cover of ball joint supply longer service life
-
Corrects geometry for proper alignment and improved handling
-
Powder coated finish
-
Ball joint and bushing parts can be replaced
-
Lifetime warranty for tubular arms and one-year warranty for ball joints and bushings
-

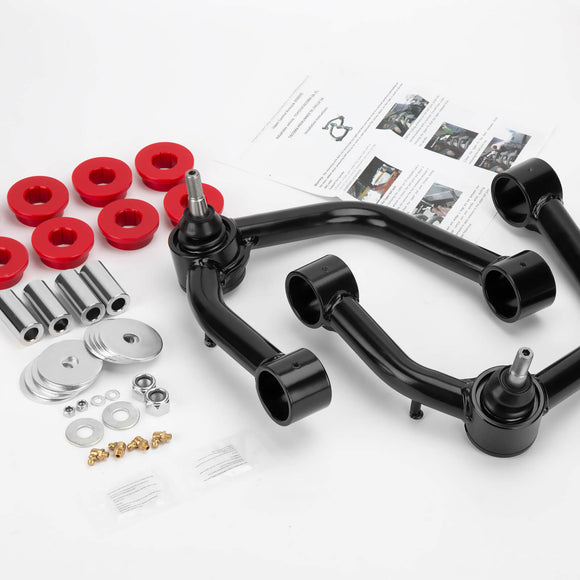

Included 2 upper control arms, 8 Poly Bushings, 4 sleeves, 4 zerks and lubrication

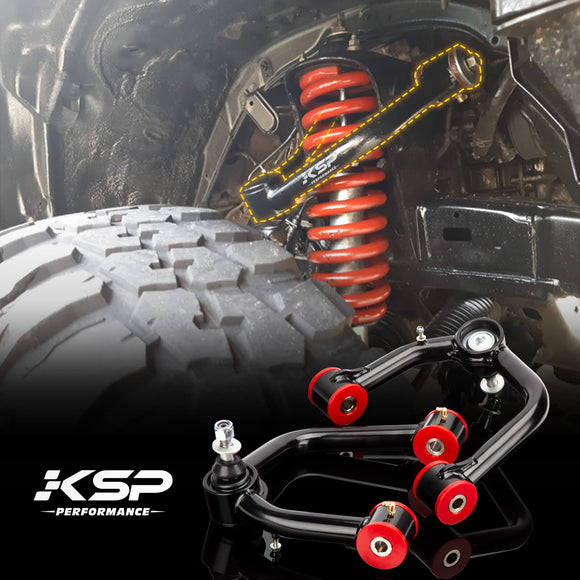

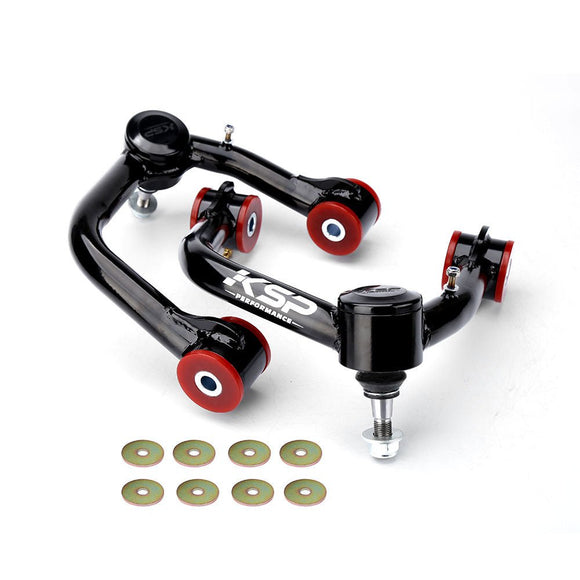

TOYOTA Upper Control Arm corrects the ball joint angle for 2"-4" front leveling kits. The Upper Control Arms feature a solid and Q235 Carbon Steel Plate with High-Strength Argon Arc Welding Process.
TACOMA Upper Control Arm Constructed from 1.25" DOM Tubing and MIG Welded which will improve driving, handling characteristics and suspension articulation. KSP’s Upper Control Arms feature POM ball joints for a greater range of motion offering more wheel articulation than standard or OE replacements.Especially in CNC Machined provides bolder and safer pipe diameter.

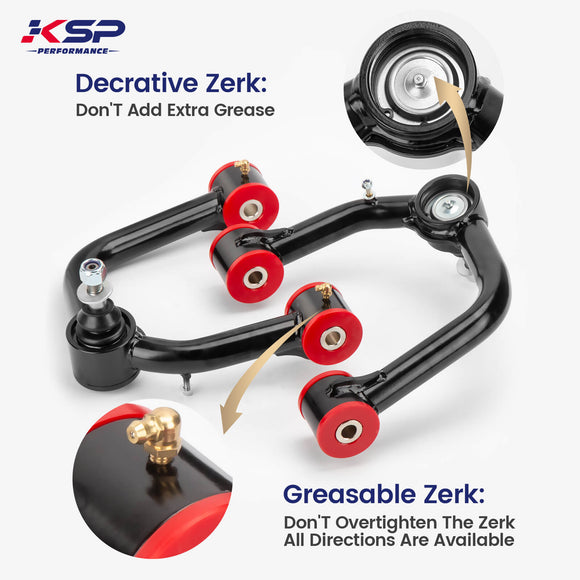

The KSP (UCA) -This special design with polyurethane bushings and zerk fittings for simple lubrication which can provide superior strength and durability.
What combination of Tacoma Wheel&Tire works with MT-3C293059?
For factory wheels：265/75R16 (31.6" x 10.4") tire with factory 16" wheels
275/70R17 (32.2" x 10.8") tire with factory 17" wheels
255/75R17 (32.1" x 10") tires with factory 17" wheels
245/75R17 (31.5" x 9.6") tires with factory 17" wheels
275/65R18 (32.1" x 10.8") tires with factory 18" wheels
Any tire that is 32.2" diameter and smaller there is no fitment problem.
For oversize tires (over 32.5")
Note: Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation.
These suggestion is only tire to upper a-arm clearance, you may still need to do body mount chop and clearance of the wheel wells and front bumper.
33x12.5" wide tire:
7" wide wheel need at least 3.25" backspace (7J with Offset -19)
7.5" wide wheel need at least 3.50" backspace (7.5J with Offset -19)
8" wide wheel need at least 3.75" backspace (8J with Offset -19)
8.5" wide wheel need at least 4.00" backspace (8.5J with Offset -19)
9" wide wheel need at least 4.25" backspace (9J with Offset -19)
315/70 R17 (34.4" x 12.4") 12.4" wide tire:
7" wide wheel need at least 3.50" backspace (7J with Offset -12)
7.5" wide wheel need at least 3.75" backspace (7.5J with Offset -12)
8" wide wheel need at least 4.00" backspace (8J with Offset -12)
8.5" wide wheel need at least 4.25" backspace (8.5J with Offset -12)
9" wide wheel need at least 4.50" backspace (9J with Offset -12)
275/70 R18 (33.2" x 10.8") 10.8" wide tire:
7" wide wheel need at least 4.25" backspace (7J with Offset +6)
7.5" wide wheel need at least 4.50" backspace (7.5J with Offset +6)
8" wide wheel need at least 4.75" backspace (8J with Offset +6)
8.5" wide wheel need at least 5.00" backspace (8.5J with Offset +6)
9" wide wheel need at least 5.25" backspace (9J with Offset +6)
285/70 R17 (32.7" x 11.2"), BFG K02s at 285/75 R16 (32.8" x 11.2") 11.2" wide tire:
7" wide wheel need at least 4.00" backspace (7J with Offset 0)
7.5" wide wheel need at least 4.25" backspace (7.5J with Offset 0)
8" wide wheel need at least 4.50" backspace (8J with Offset 0)
8.5" wide wheel need at least 4.75" backspace (7.5J with Offset 0)
9" wide wheel need at least 5.00" backspace (9J with Offset 0)
295/75 R16 (33.4" x 11.6") 11.6" wide tire:
7" wide wheel need at least 3.75" backspace (7J with Offset -6)
7.5" wide wheel need at least 4.00" backspace (7.5J with Offset -6)
8" wide wheel need at least 4.25" backspace (8J with Offset -6)
8.5" wide wheel need at least 4.50" backspace (8.5J with Offset -6)
9" wide wheel need at least 4.75" backspace (9J with Offset -6)
255/85 R16 (33.10" x 10") 10.0" wide tire:
7" wide wheel need at least 4.50" backspace (7J with Offset +12)
7.5" wide wheel need at least 4.75" backspace (7.5J with Offset +12)
8" wide wheel need at least 5.00" backspace (8J with Offset +12)
8.5" wide wheel need at least 5.25" backspace (8.5J with Offset +12)
9" wide wheel need at least 5.50" backspace (9J with Offset +12)
