People usually consider horsepower, torque, and zero-to-60 acceleration when it comes to auto performance. In contrast, a piston engine's power is meaningless if the driver cannot control the vehicle. That's why auto engineers focused on the suspension system almost as soon as they developed the four-stroke internal combustion engine. If you drive on tough, bumpy roads frequently, your shocks and struts may need to be replaced sooner.
A car suspension aims to maximize the friction between the tires and the road surface, offer steering stability and good handling, and maintain passenger comfort. This article will look at how car suspensions operate, how vehicle's suspension system has changed through time, and where the future of brake design remains headed. Look at the article why lift kits benefits us.
Suspension parts would be unnecessary if a road were level with no abnormalities. The streets, on the other hand, are far from boring. Even recently resurfaced highways have tiny flaws that interact with the wheels of an automobile. Forces are applied to the wheels as a result of these faults. Newton's Laws of Motion state that all parties have magnitude and direction. While there exists a bump in the road, the wheel goes up and down perpendicular to the road surface. Whether the wheel hits a huge bump or a speck determines the magnitude of the damage. As the car wheel passes over an imperfection, it receives a vertical acceleration in either case.
Without an intermediate structure, the entire wheel's energy is passed to the frame, which moves in the same direction as the wheel. The tires may lose all touch with the road in this case. The tires can then slam back into the road surface due to gravity's downward force. You'll need a mechanism that can absorb the vertically accelerated wheel's kinetic energy, allowing the frame and body to ride unaffected while the tires follow bumps in the road.
Road isolation, road holding, and cornering are three fundamental principles that can be used to characterize these two features. The capacity of a car's ride to smooth out a bumpy road, according to vehicle dynamics, and its handling to safely accelerate, corner, and brake. With this in mind, the compression cycle regulates the unsprung weight of the vehicle, while the extension cycle controls the larger, sprung weight.
Suspension is one of the most significant systems in any vehicle. So far, we've just talked about how springs and dampers work on specific wheels. The four wheels of an automobile, on the other hand, work in two separate systems: the front axle connects two wheels, while the rear axle connects two wheels. That implies that a car's front and rear suspension can differ.
The former is called a dependent system, whereas the latter is an independent system. The following parts will go through some of the most popular fronts and rear suspensions found in mainstream vehicles.
The chassis, which includes the whole important system beneath the car's body, consists of the suspension. Among these systems are:
The frame: a load-bearing structural component that supports the engine and body of the car, which are in turn supported by the suspension.
The suspension system: a suspension system that supports weight, absorbs and dampens stress, and aids in tire contact.
The steering system: a device that allows the driver to steer and maneuver the vehicle. The capacity of a vehicle to navigate a curved road with reducing body roll is referred to as cornering.
The tires and wheels: components that enable vehicle motion through friction and grip with the road.
Dependent Front Suspensions
A rigid front axle joins the front wheels with dependent front suspensions. It seems to be a solid bar beneath the car's front end, held in place by leaf springs and shock absorbers. Dependent front suspensions, common on trucks, haven't been seen in mainstream automobiles in years.
Independent Front Suspensions
The front wheels are permitted to move independently in this configuration. The MacPherson strut, invented by General Motors' Earle S. MacPherson in 1947, is the most extensively used front suspension system, particularly in European cars.
People can utilize it to make a more compact and lighter suspension system for front-wheel drive vehicles.

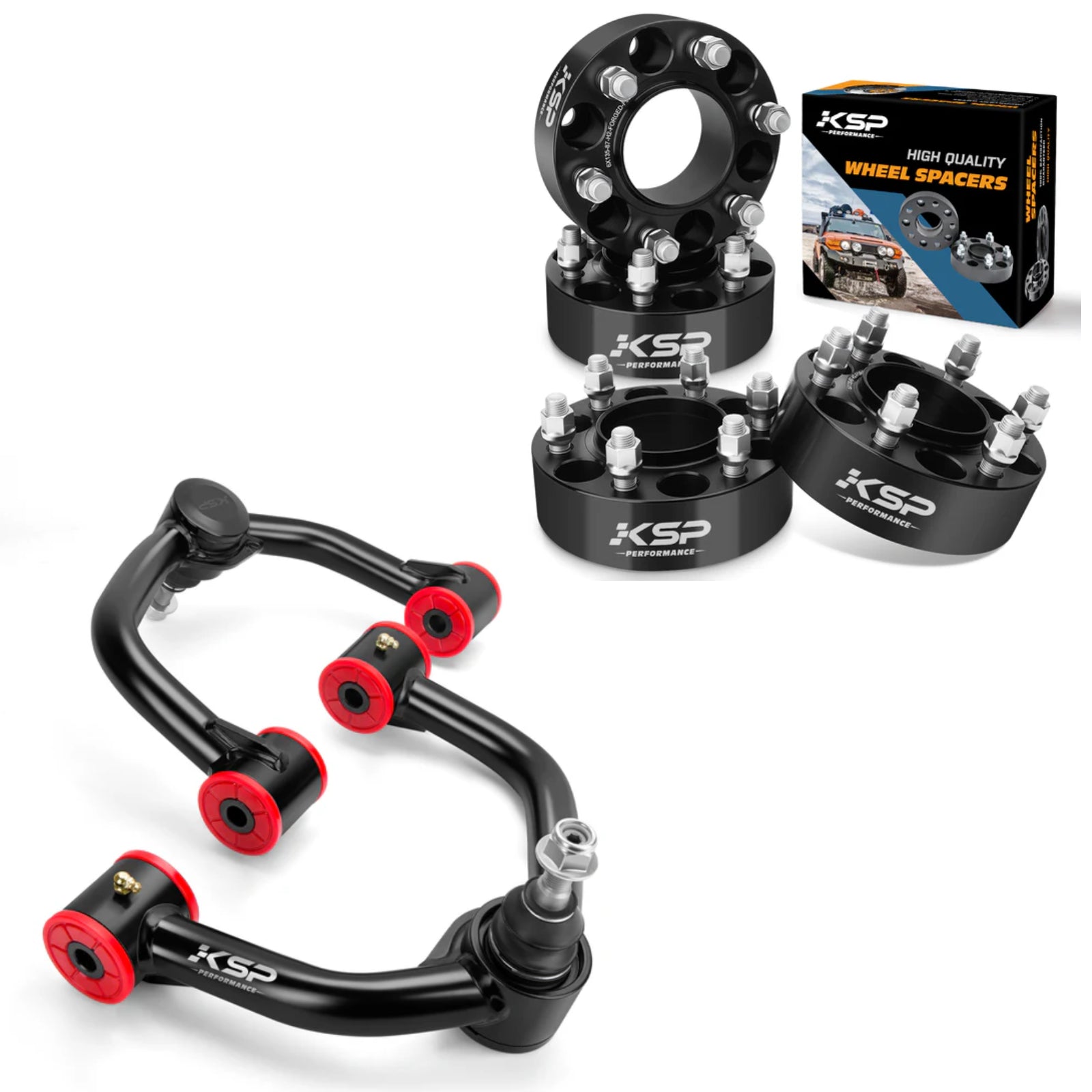

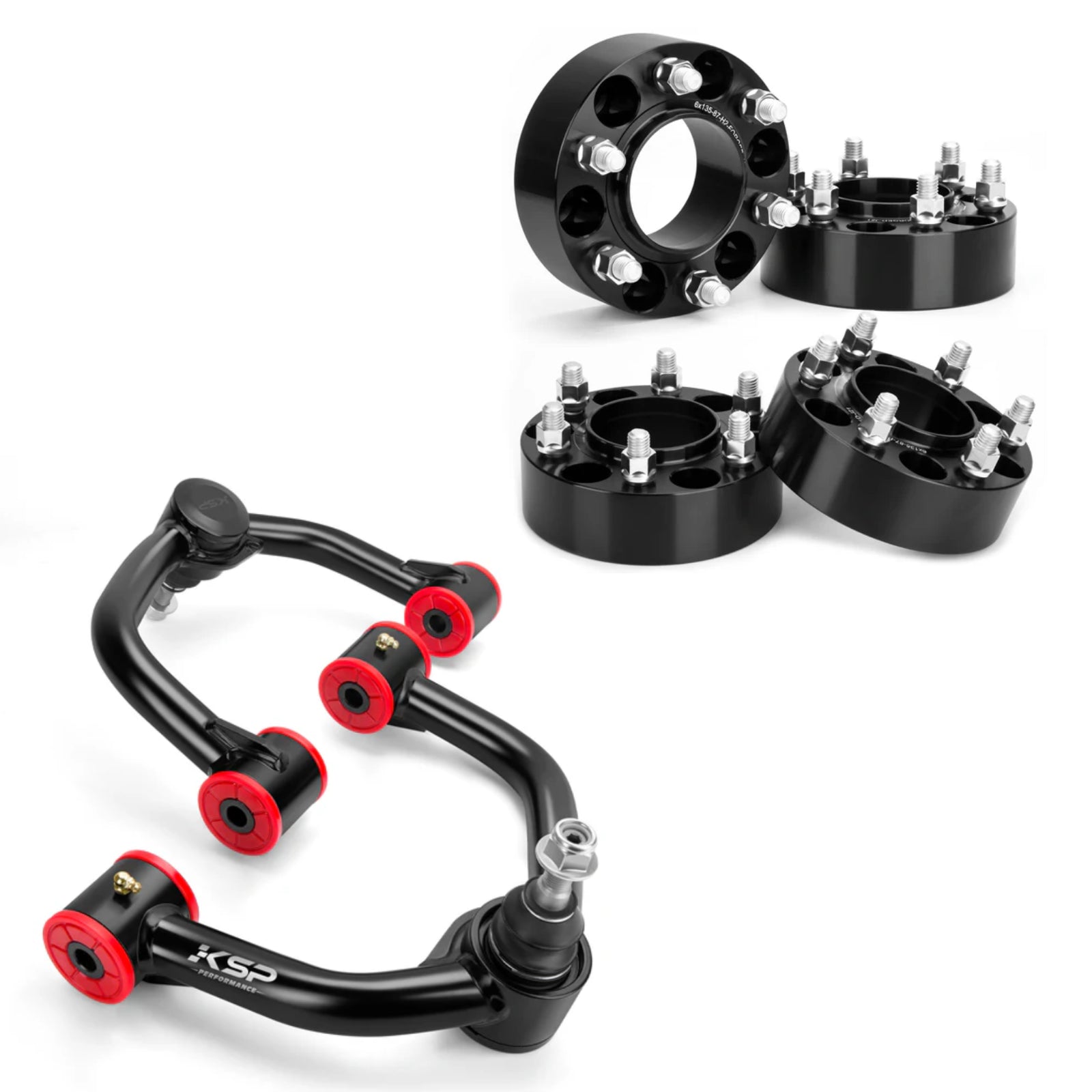

Another common type of front dependent systems are the double-wishbone suspension, commonly known as an A-arm suspension or control arms suspension.
While there are various conceivable arrangements, the wheel is commonly located by two wishbone-shaped arms. Each wishbone contains a shock absorber and a coil spring to absorb vibrations, with two mounting plates to the frame and one at the wheel. Shock absorbers also aid in reducing roll and sway and providing a more consistent steering feel. The double-wishbone suspension is widespread on the front wheels of larger cars because of these properties. Torsion bar suspension, which uses twisting bars inside the hull to provide suspension springs force, was another popular option.Torsion bars may take space under or near the floor. And many torsion bars may interfere with making the tank low to reduce exposure. The spring force is then provided by the torsion bar twisting along its axis.
Dependent Rear Suspensions
When a solid axle connects a car's rear wheels, the car's suspension system is usually basic — either a leaf spring or a coil spring. The leaf springs clamped directly to the driving axle in the previous design. Coil springs can be employed in place of the leaves to create the same basic design. The spring and shock absorber can be installed as a single unit or as separate components in this situation. The springs can be significantly smaller when they're varied, decreasing the space the suspension systems take up.
Independent Rear Suspensions
When both the front and rear suspensions are independent, all four wheels are mounted and sprung separately, resulting in "four-wheel independent suspension," as advertised in automotive commercials. People can locate variations of the front independent systems discussed in the preceding section on the rear axles. Any vehicle suspension that can stay on the front of the vehicle can remain in the back. The steering rack, which incorporates the pinion gear wheel and allows the wheels to turn from side to side, is missing from the car. It means that rear independent suspensions can be reduced versions of independent front suspensions while maintaining the same core principles.
